Kalgold

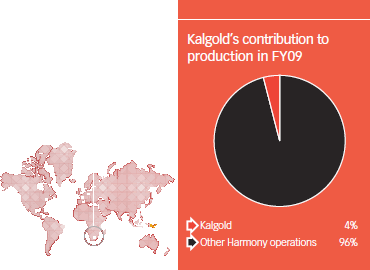

Kalgold’s contribution to production in FY09 Kalgold location [SA map]

Description

Kalgold is an open pit mining operation close to Mafekeng in North West Province. The mine, which accesses gold-bearing ore in a banded ironstone formation in a shear zone within the Kraaipan Greenstone Belt, has the Kalgold CIL Plant on site.

In FY09, Kalgold employed 468 people – 233 employees and 235 contractors.

Mineral resources and ore reserves

At the end of June 2009, the Kalgold operation reported ore reserves of 0.732 million ounces of gold and mineral resources of 3.910 million ounces. The operation’s expected life-of-mine extends to FY22, whereafter the heap leach material will be processed for a further two years.

Exploration drilling was undertaken during the year, encountering mostly narrow zones (2 to 5 metres) of mineralisation with grades of 1 to 3 g/t and limited strike length (less than 200 metres). Some potential for satellite mill feed was und at the Spanover Border and Spanover North areas, and high-grade mineralisation with uncertain geometry was discovered at the Farmhouse Zone. See the mineral resources and ore reserves section (PDF - 54KB) for more detail.

KalgoldMineral resourcesOre reserves
 MeasuredIndicated InferredTotalProven ProbableTotal
Oz (000)1 0372 0028713 910425307732
Tonnes (Mt)34.566.028.4128.915.59.024.5
Grade (G/t)0.930.940.950.940.841.070.93
Kalgold life-of-mine [graph]

Safety

Kalgold achieved two million fatality-free shifts during the year. This operation has not had a fatal accident since inception. The LTIFR per million hours worked for the year was 2.94 (FY08: 4.97).

Kalgold FIFR (per million hours worked)

Kalgold LTIFR (per million hours worked)

Kalgold key statistics:

 UnitFY09 FY08FY07
Production
Volumes milled000 t (metric) 1 5421 5301 578
 000 t (imperial) 17001 6871 740
Gold producedkg 2 0152 8691 764
 oz 64 78492 22956 714
Average gradeg/t 1.311.871.12
 oz/t 0.0380.0550.033
Financial
RevenueR million 512557257
 US$ million 577736
Cash costsR/kg 146 31494 312117 155
 US$/oz 577736
Cash operating profitR million 22027961
 US$ million 25399
Capital expenditureR million 10103
 US$ million 11-

Kalgold key quarterly indicators: FY09

Tonnes (000) [graph]

Grade (g/t) [graph]

Gold produced (kg) [graph]

Cash costs (R/kg) [graph]

Cash profit (R000) [graph]

The year in review

Volumes processed at Kalgold, at 1 542 000 tonnes, were similar to FY08, despite technical problems (failure of a bearing on the C-mill), disruption to power supply as a result of excessive thunderstorm activity, excessive rain and delays caused by chokes in the crushers as a result of the high clay content of ore mined from the weathered zone in the Watertank pit.

Gold production declined by 30% to 2 015 kilograms (64 784 ounces), however, owing largely to the 30% decline in grade to 1.31g/t as operations at the high-grade D Zone pit came to an end in March 2009. Nonetheless, this zone was mined for six months longer than scheduled. Mining now takes place at the lower-grade Watertank satellite pit. Cash costs were negatively affected by lower grade, with average cash costs for the year rising to R146 314/kg (US$506/oz). Kalgold reported an operating profit of R220 million (US$25 million). Capital expenditure for the year was R10 million (US$1 million).

Harmony intends to continue with brownfields exploration in the areas surrounding the Kalgold operation.

Outlook*

The lower grade Watertank pit will be mined for the next 22 months, while reef in the A zone pit will begin in two years’ time. Tonnes milled will remain stable at 1 719 000 tonnes over this period. An average recovered grade of 0.83g/t over the life of mine will not vary significantly. Gold production should therefore be around 1 443 kilograms per annum (46 000 ounces). Cash costs** are expected to be in the region of R188 000/kg in FY10 (US$757/oz).

Total capital expenditure** planned for FY10 is R12 million (US$1.55 million). This will mainly be spent on major equipment maintenance and other project capital.

*  Please refer to the forward-looking statements (PDF - 54KB)

** June 2009 money terms. The exchange rate as at 30 June 2009 of R7.72/US$ has been used for all forward-looking conversions.

Kalgold: Five-year production profile [graph]
